Removable, fold-down, welded fixed or split-opening — one frame, four ways to get the side out of your way.

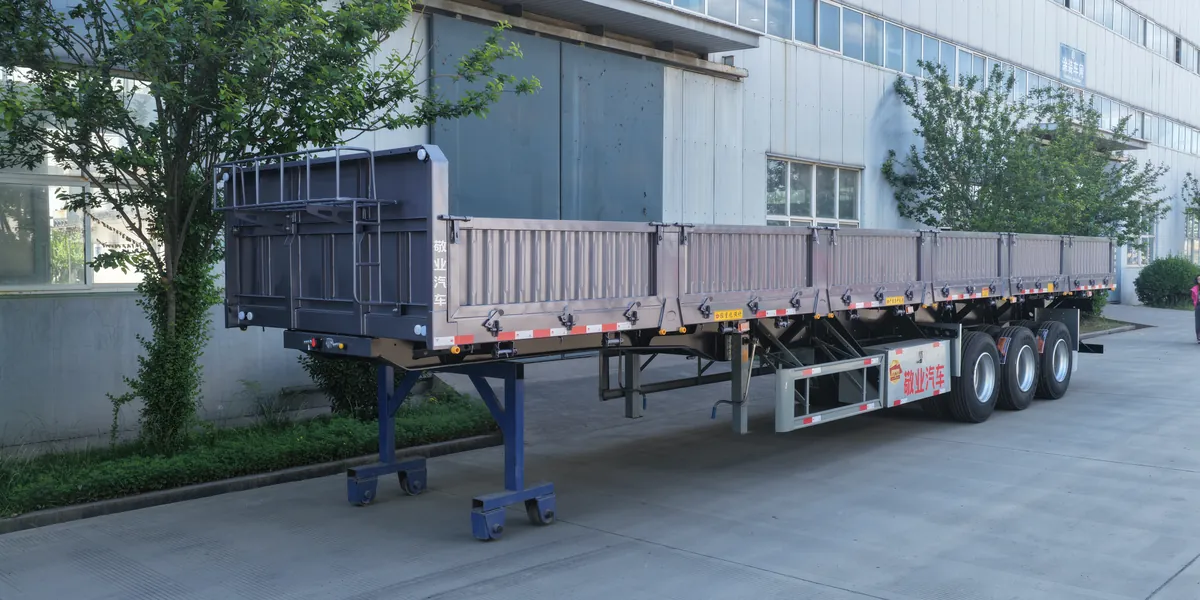

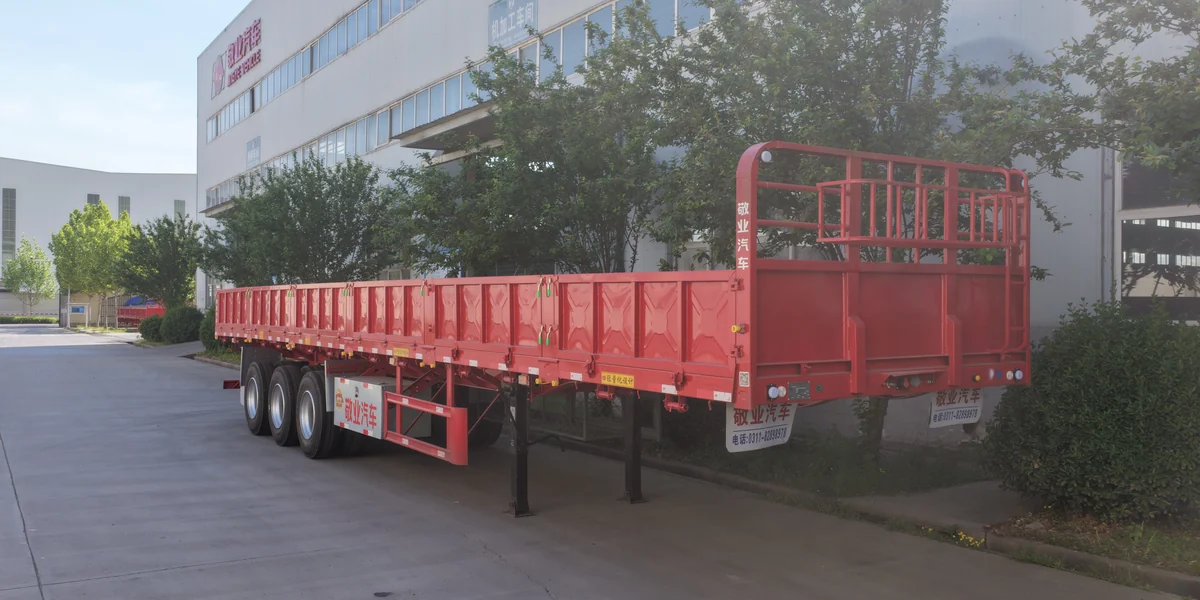

Four stanchion types, one frame. How a dropside earns its keep depends entirely on how fast the side comes off. We build four configurations — removable (slot-in), fold-down, welded fixed, and split-opening — and the tailgate can be specified as split-opening or fold-down independently of the sides.
Pick removable if you load with a side crane, fold-down if you strap by hand, welded if the load never changes, split if you do both.
Three axles on a 6.8 m wheelbase. Axle spacing is 6800 / 6600 / 6400 / 6280 + 1310 + 1310 mm depending on deck length.
| Model | PJY9400 |
|---|---|
| Overall dimensions | 13000 / 12500 / 12000 × 2550 / 2500 × 2730–3100 mm |
| Kerb weight (manufacturer’s stated) | 6100 / 5600 kg |
| Rated payload | 33900 / 34400 kg |
| Axles | 3 |
| Wheelbase | 6800 / 6600 / 6400 / 6280 + 1310 + 1310 mm |
| Stanchions | Removable / fold-down / welded / split-opening |
| CCC | 2017091101007727, valid to 2027-10-14 |
CCC certificate 2017091101007727 covers model PJY9400, valid to 14 October 2027. The full scan is on our certifications page.
The same certificate also lists our fence semi trailer models. The models were type-approved together on one certificate; it is a filing arrangement, not a product relationship.
We will walk you through the plant on video and answer questions live.
