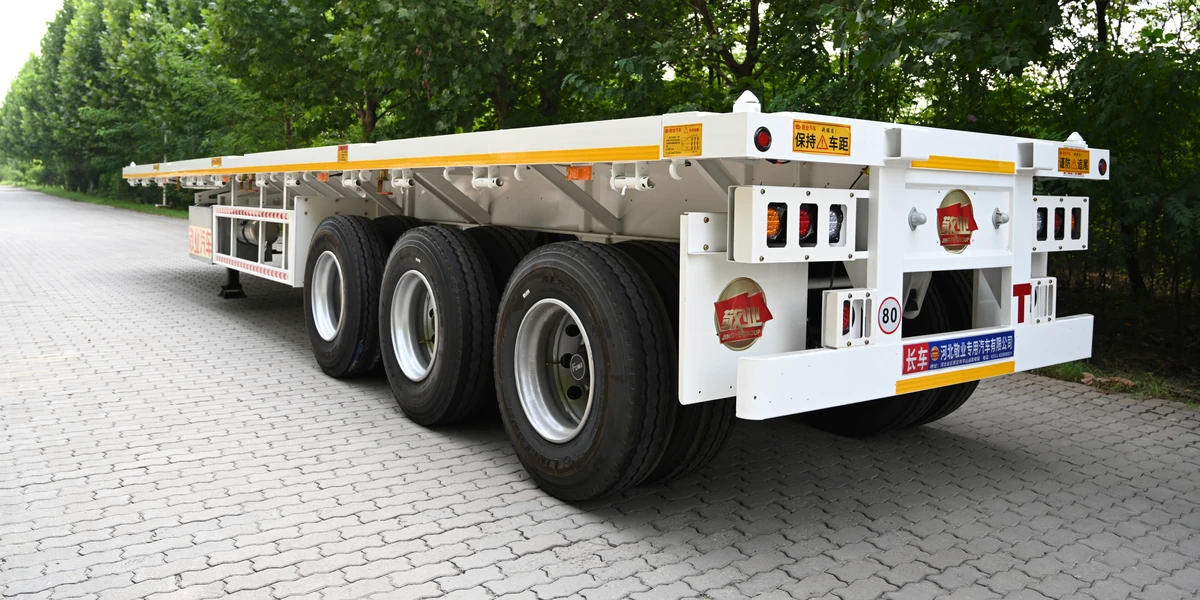

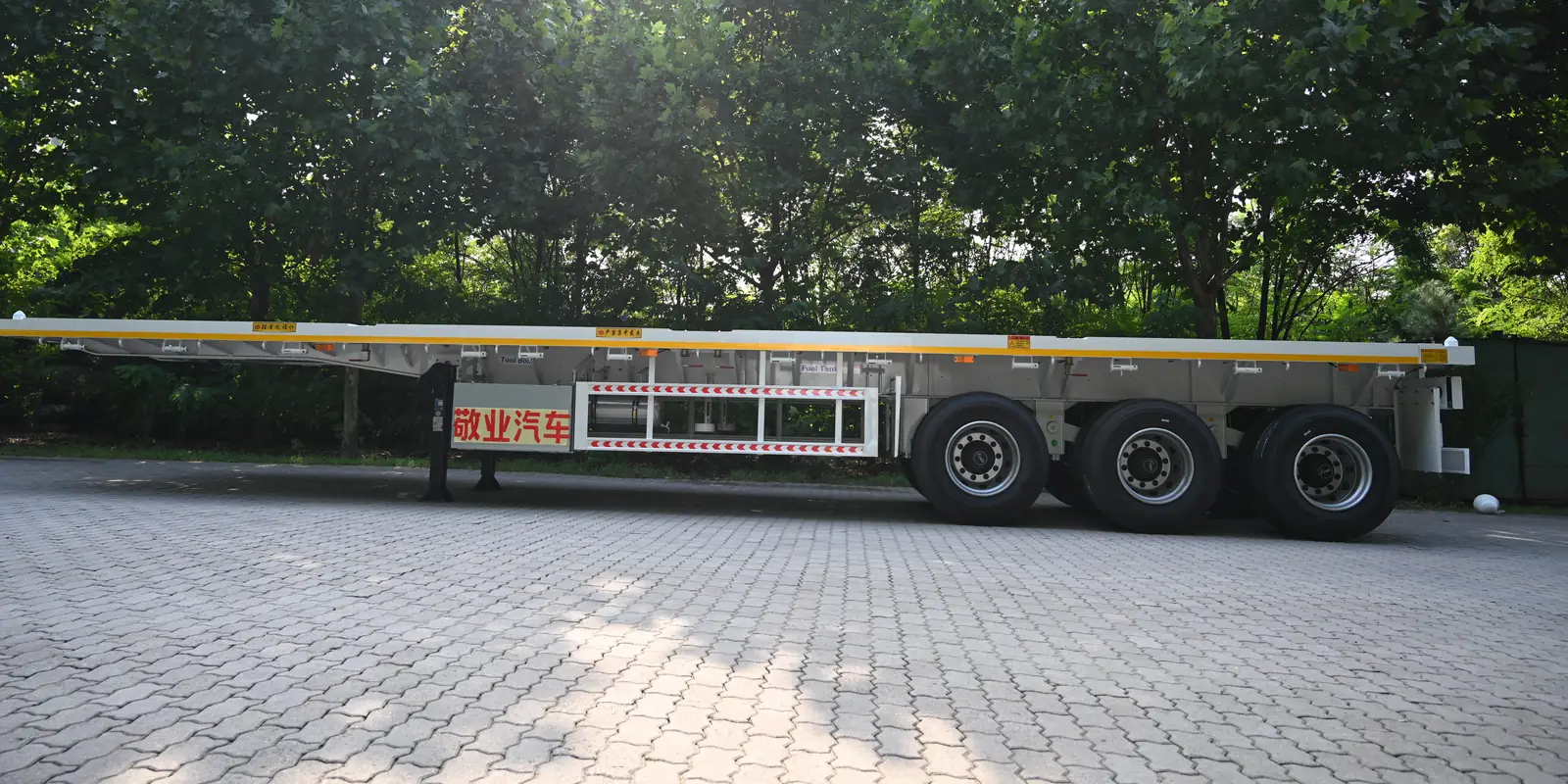

A 12.4 m three-axle flatbed for containers, steel and project cargo, finished with a cathodic electrophoresis primer and a powder topcoat.

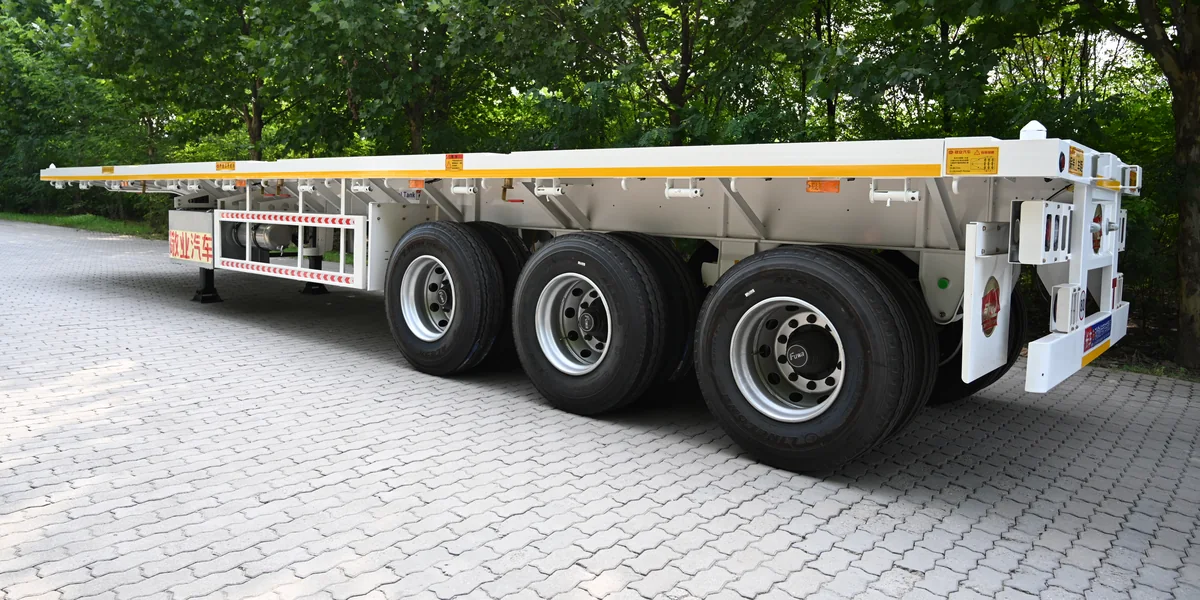

The deck is 12,400 mm long and 2,480 mm wide, laid in 2.75 mm checker plate over high-tensile main beams, with 12 twist locks for container work and 16 stake pockets down the sides.

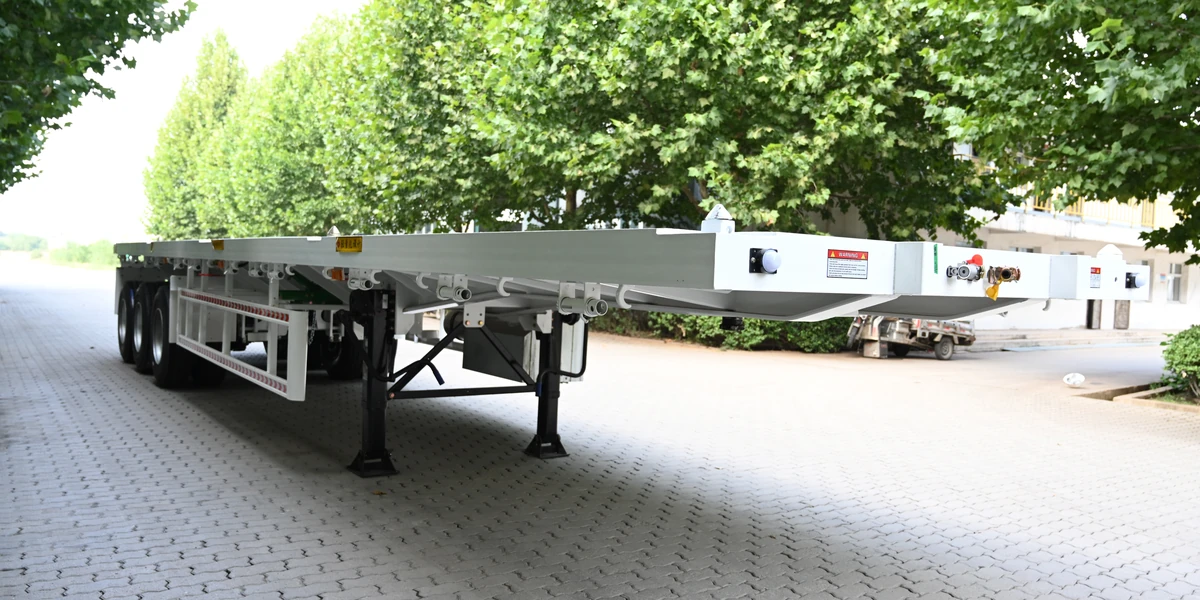

Running gear is the export specification: three FUWA 13-tonne drum-brake axles, two of them with ABS, a JOST bolt-on king pin, FUWA 28-tonne single-speed landing legs, and 12R22.5 tyres on ten-hole rims.
Frames are shot-blasted, degreased and silane-treated, then given a cathodic electrophoresis primer and a powder topcoat — 100 to 150 µm dry film on export units, tested to at least 720 hours of neutral salt spray.
| Overall dimensions (L × W × H) | 12,400 × 2,480 × 1,570 mm |
|---|---|
| Tare weight | 6,850 kg |
| Coupling height (unladen) | 1,300 mm |
| Front headboard | Not fitted as standard |
| Axles | 3 × FUWA 13 t, drum brake |
| ABS | Fitted on two axles (KEMI) |
| King pin | JOST 50 #, bolt-on |
| Main beams | Q355B high-tensile steel |
| Deck | 2.75 mm checker plate |
| Container locks | 12 twist locks |
| Stake pockets | 16 (8 per side) |
| Landing gear | FUWA 28 t, single-speed |
| Brake chambers | 6 |
| Air tanks | 2 × 40 L, aluminium alloy |
| Tyres | 13 × 12R22.5-18PR (Linglong) |
| Rims | 13 × 9.00 × 22.5, 10-hole |
| Electrical system | 24 V, 7-pin socket, LED lamps |
| Toolbox | 1, 1 m |
| Fuel tank | 1,000 L |
| Water tank | 1,000 L |
| Surface treatment | Shot blast, degrease and silane pretreatment, cathodic electrophoresis, powder topcoat |
| Dry film thickness | 100–150 µm (export specification) |
| Salt spray test | ≥ 720 h, neutral salt spray |
| Transit wax coating | Not included as standard |
| Frame colour | White as standard; other colours to order |
This is the container-oriented member of the flatbed family: a 12.4 m deck with twist locks fitted, sized around a 40 ft box rather than around general cargo.
If your work is mixed — coils one week, machinery the next, containers when they come — the 13 m platform is usually the better buy, because it gives you deck length you can use for anything and takes a 30 t concentrated load. Tell us the split between container work and loose cargo and we will say which frame earns its keep on your route.
Axle count is fixed at three. Suspension, leaf pack, side guards, toolbox and paint colour are specified per order — tell us the route, the load and the fifth-wheel height you run.
