Specified by lock count first, not by model name — 4, 6, 8 or 12 twist locks, gooseneck or straight frame.
The mismatch that costs you a turn. The most expensive thing a chassis can do is arrive at the terminal with lock positions that do not suit the box you were given. So we specify by lock count first, not by model name.
| Twist locks | Boxes carried |
|---|---|
| 4 | 1 × 40ft |
| 6 | 1 × 40ft |
| 8 | 1 × 40ft or 2 × 20ft |
| 12 | 1 × 40ft or 2 × 20ft |

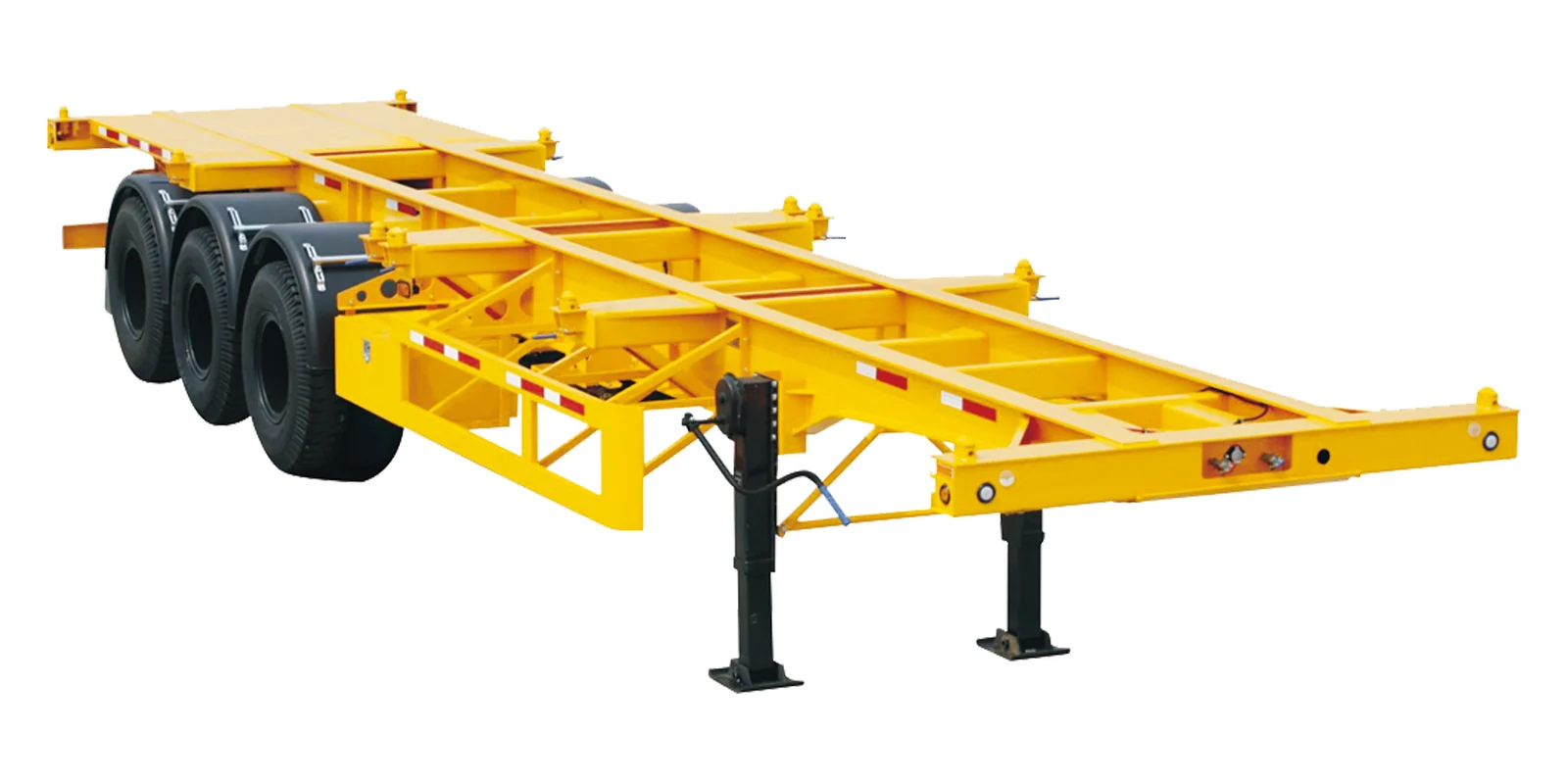

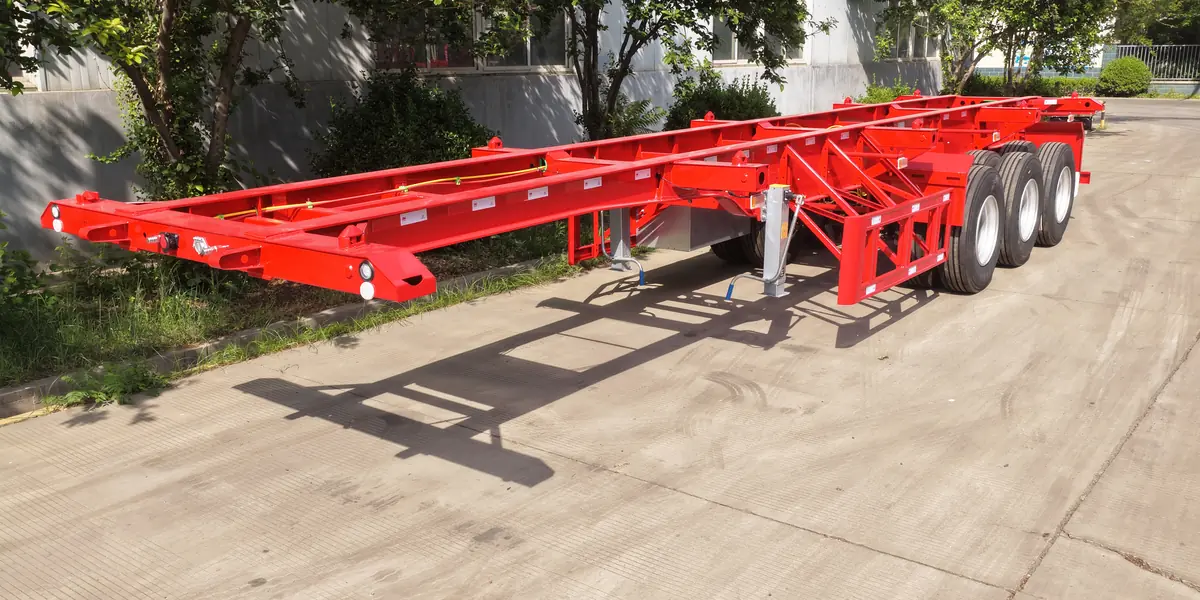

Gooseneck or straight. The gooseneck version uses a stepped main beam for reduced loaded height; the straight version uses a level beam throughout. Which one you want depends on your tractor’s fifth-wheel height and your terminal’s ramp profile — tell us both and we will specify it rather than guess.
| Model | PJY9400TJZ |
|---|---|
| Overall dimensions | 12400 / 12300 × 2550 / 2500 × 1650–1400 mm |
| Tare weight (manufacturer’s stated) | 5300 / 4850 kg |
| Rated payload | 34700 / 35150 kg |
| Twist locks | 4 / 6 / 8 / 12 |
| Frame | Gooseneck or straight |
| CCC | 2018091101008165, valid to 2027-12-31 |
CCC certificate 2018091101008165 covers model PJY9400TJZ, valid to 31 December 2027. The full scan is on our certifications page.
We will specify the lock positions and the frame rather than guess.
